Product Description:

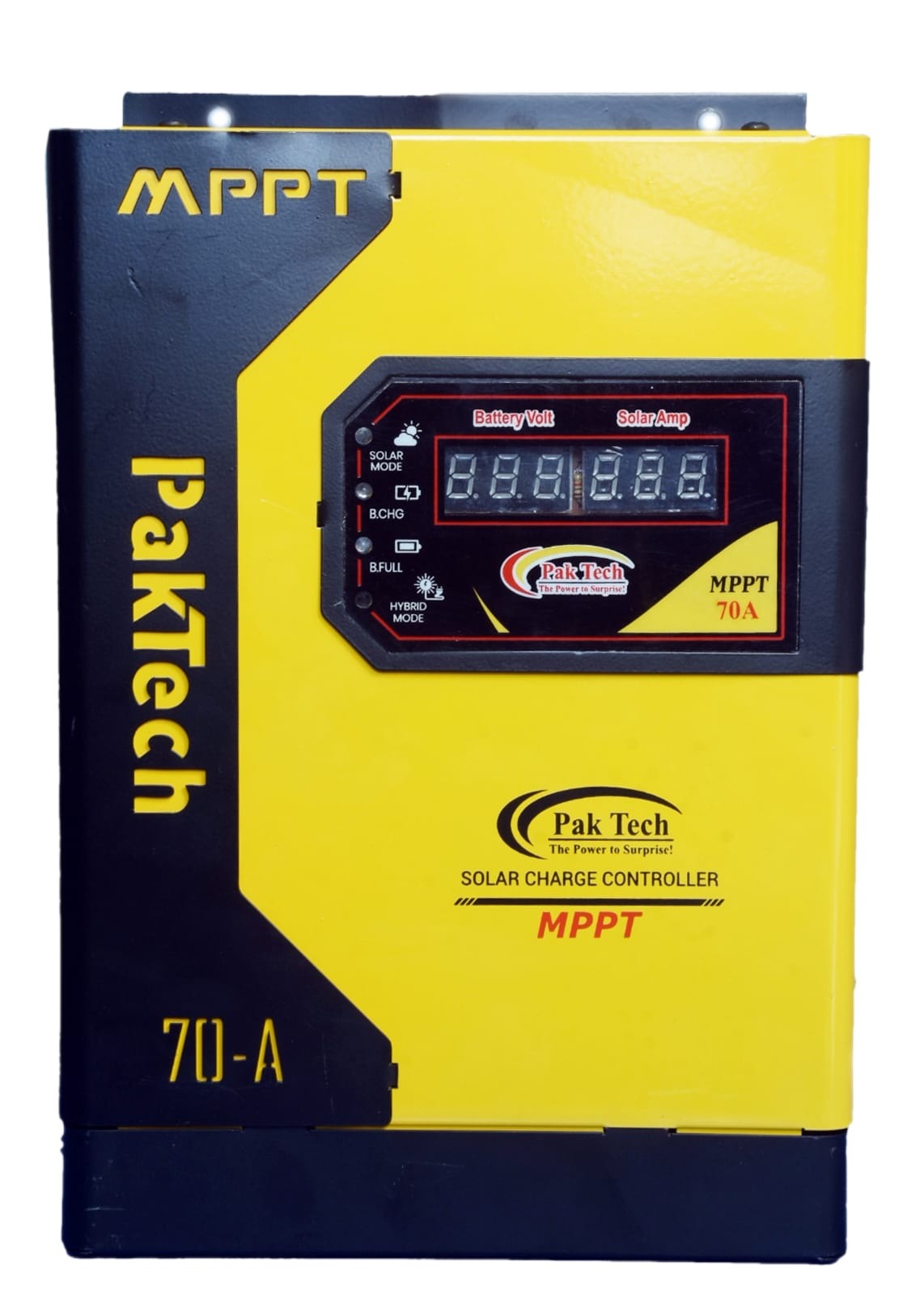

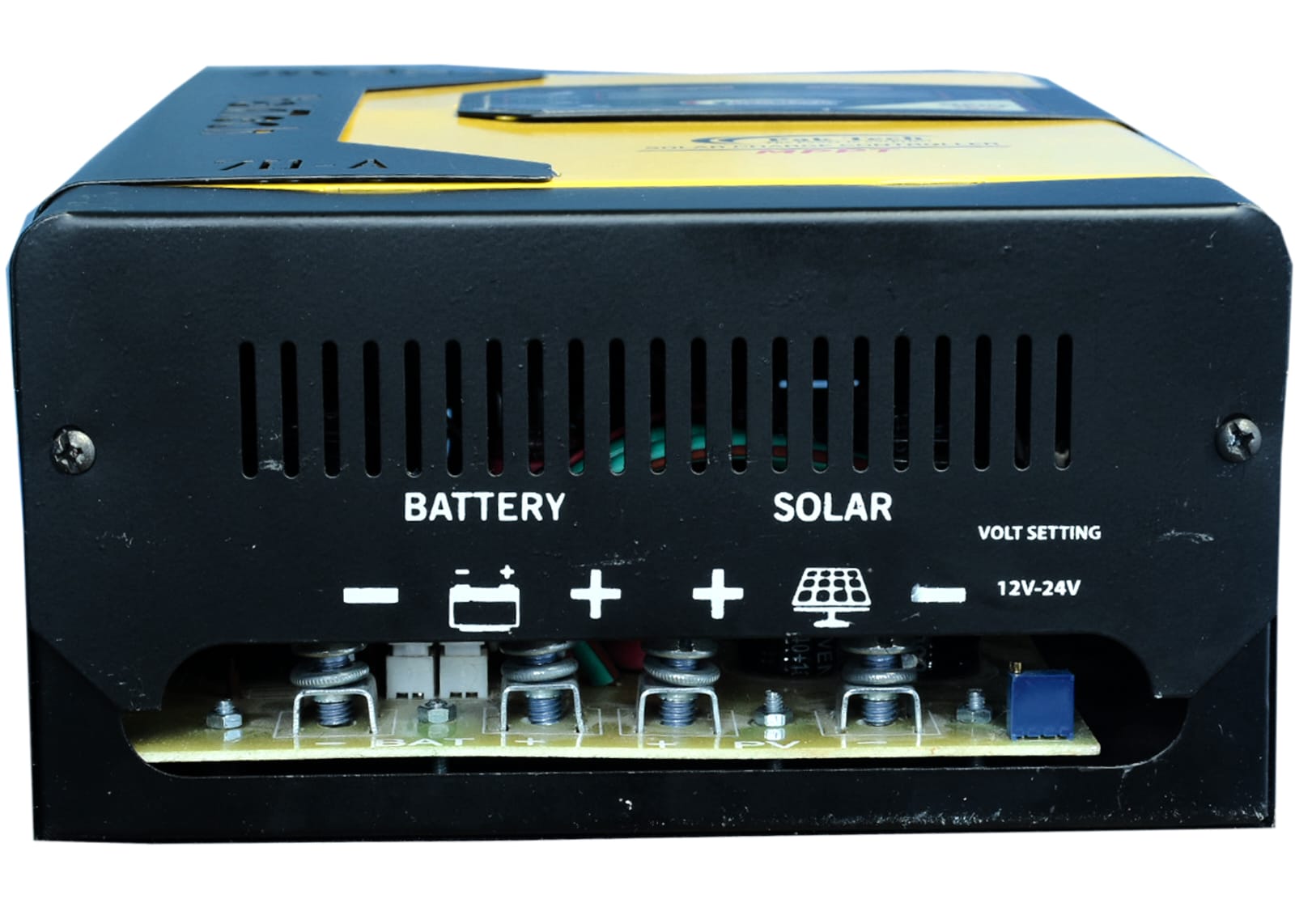

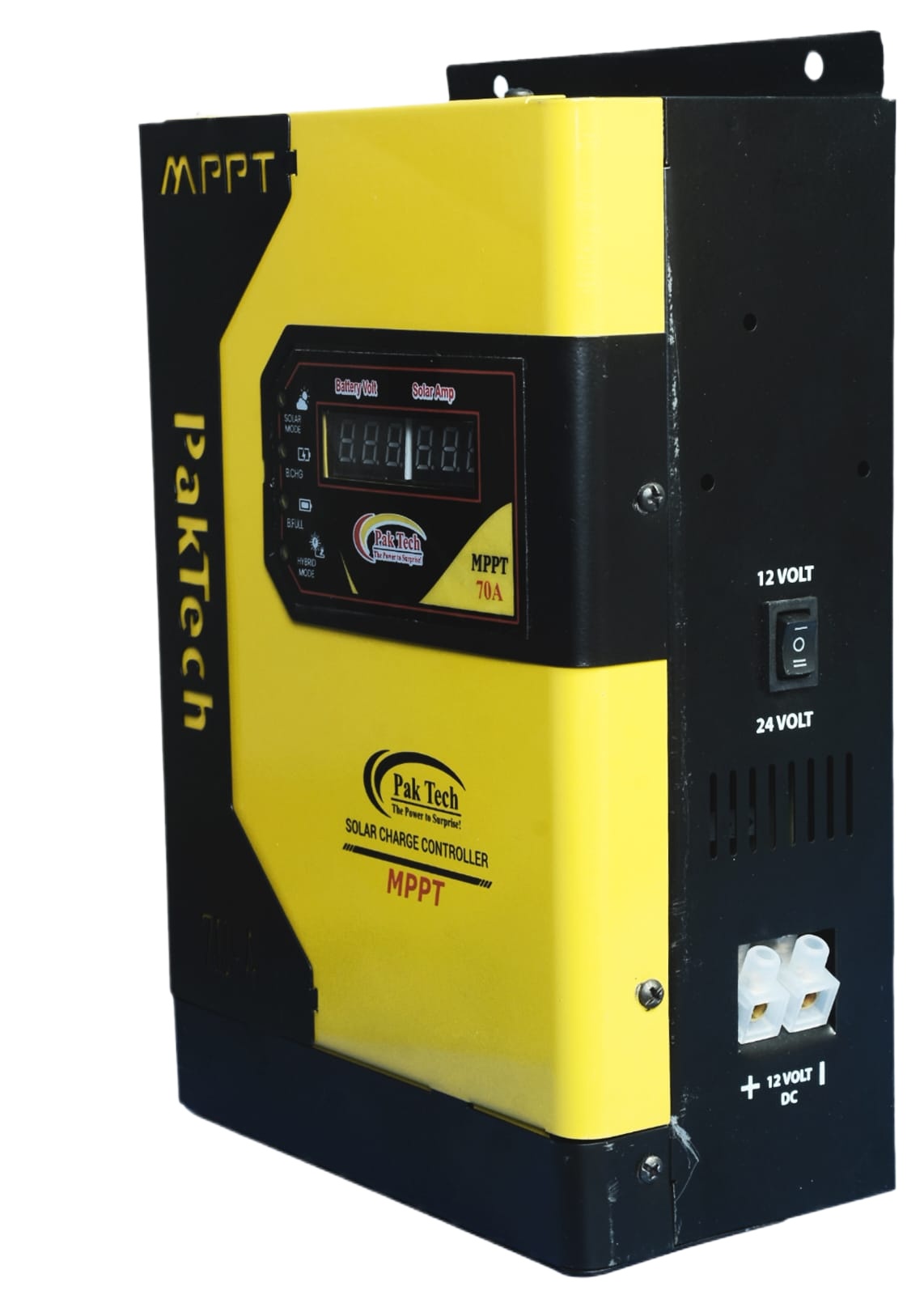

The Hybrid Pak Tech MPPT Solar Charge Controller is a high-performance solution designed to optimize the charging of your solar battery systems. With a 70A capacity, it provides efficient power management for both 12V and 24V solar setups. This charge controller is ideal for a wide range of off-grid applications, including residential, agricultural, and industrial solar systems.

Featuring MPPT (Maximum Power Point Tracking) technology, this controller ensures maximum solar power harvesting by adjusting the system to operate at the highest possible efficiency, even in varying sunlight conditions. It supports up to 1200W at 12V or 2400W at 24V, making it perfect for medium to large solar energy systems.

The built-in DC load connections allow you to power DC devices directly, reducing energy loss and enhancing overall system performance. This versatile charge controller is a must-have for anyone looking to build or upgrade their solar power system.

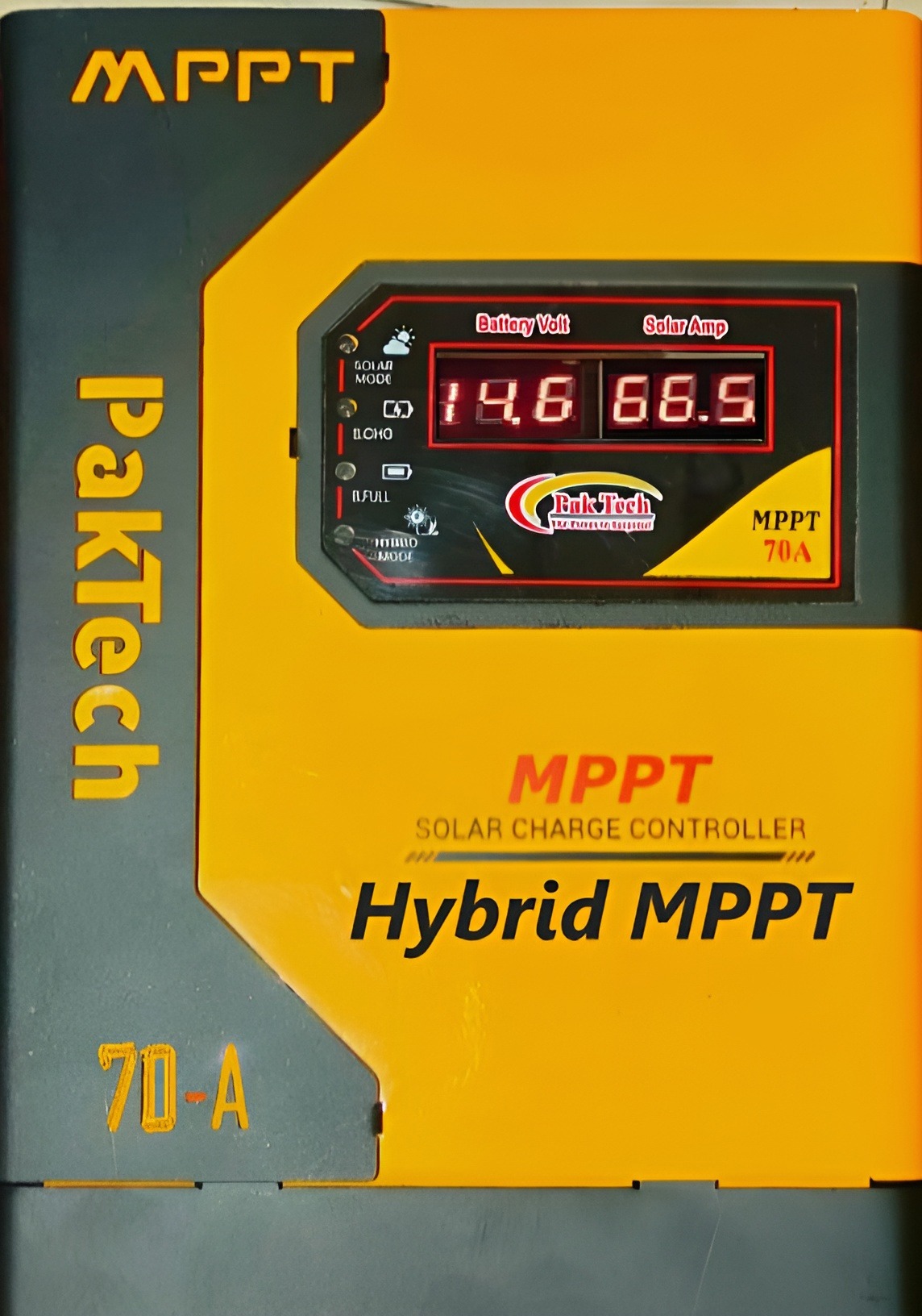

• Digital display & Led battery Level indicator
• 96% efficiency in 12-V systems and 97% efficiency in 24-v systems
• Wide input voltage range: 15 V to 100 V
• High rated output current: 70A
• Over-charge and surge protections
• Pak Tech MPPT Solar Charge Controller 70A
• Smart Digital DC 12V/24V System
• Over-temperature and ambient light detection capabilities
• Hybrid Option available to connect UPS
• UPS will disconnect from Wapda (Electricity input) at day time to save electricty
• Hybrid Function switch Automatically (Solar to Wapda or Wapda to Solar)
• Antidusk kit(Optional) for filter Air

Features:

• MPPT Technology: Automatically adjusts the operating voltage to ensure maximum solar energy capture.
• 70A Capacity: Provides robust charging for larger solar systems.

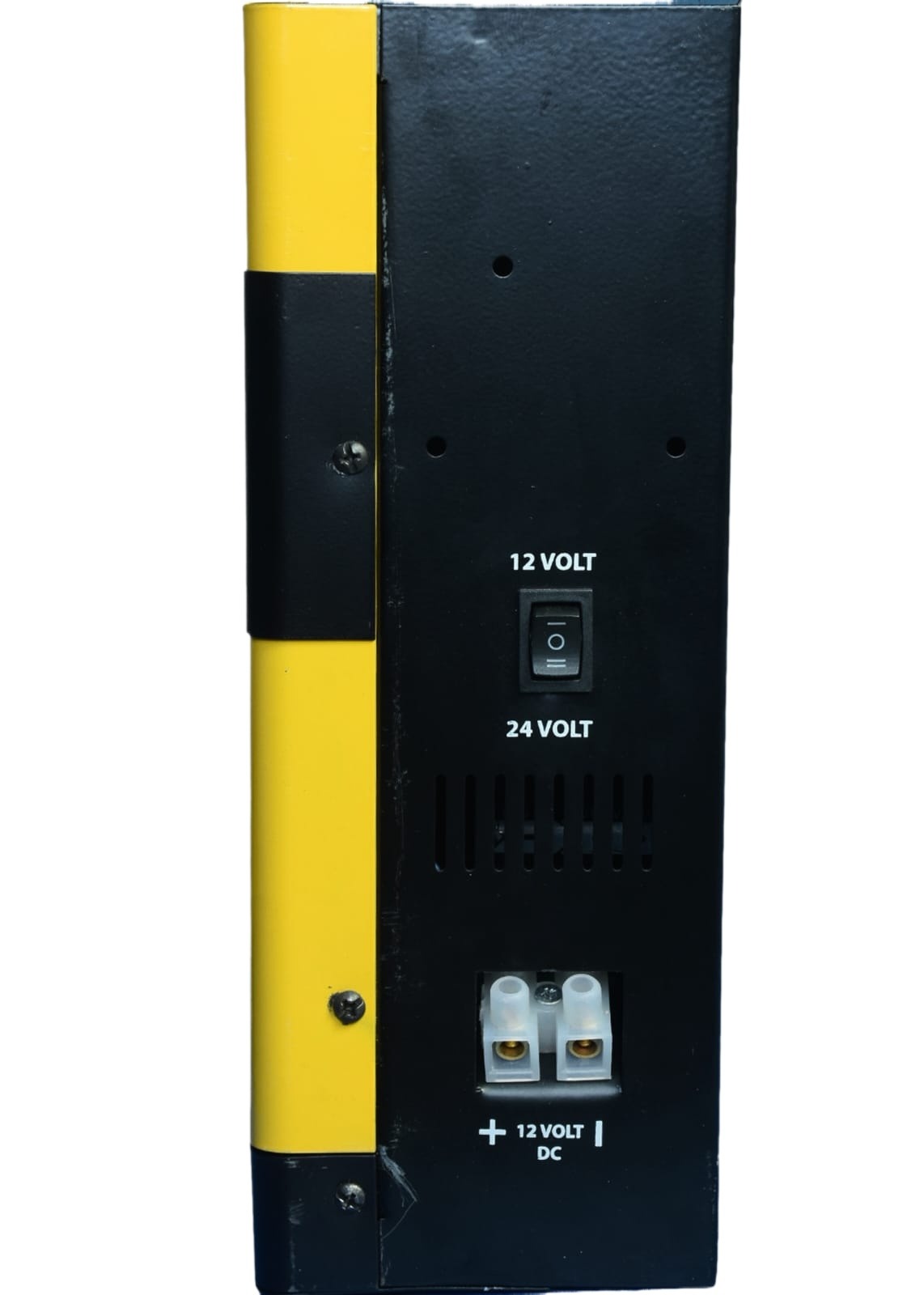

• Dual Voltage: Works with both 12V and 24V battery setups for flexible installation.
• High Power Support: Handles up to 1200W at 12V and 2400W at 24V solar systems.
• DC Load Connections: Enables powering of DC devices directly, bypassing the need for an inverter.
• Overload and Short Circuit Protection: Built-in safety features ensure reliable operation and prevent damage to your system.
• LCD Display: Monitors system performance and provides real-time data on voltage, current, and power output.

Package Includes:

• 1 x Hybrid Pak Tech MPPT Solar Charge Controller (70A).
• 1 x User Manual.

Applications:

• Residential Solar Systems: Efficient charging and power management for home solar power setups.
• Off-Grid Power Systems: Ideal for remote locations requiring self-sufficient power sources.
• Agricultural Solar Projects: Suitable for powering irrigation systems, greenhouses, and more.
• Industrial Solar Applications: Can be used in larger solar installations for factories, warehouses, etc.

Why Choose Hybrid Pak Tech MPPT Solar Charge Controller?

• Efficient Energy Management: MPPT technology ensures the best use of available solar power.
• Dual Voltage Compatibility: Works with both 12V and 24V systems, offering flexibility for various applications.
• High Power Capacity: Supports both small and large solar systems, making it suitable for diverse energy needs.
• DC Load Connections: Allows direct powering of DC devices, reducing energy loss and improving efficiency.
• Reliable Performance: Equipped with safety features like overload protection and a clear LCD display for monitoring.

Technical Specifications:

• Maximum Current: 70 Amps.
• Voltage Range: 12V/24V.
• Maximum Power: 1200W (12V) / 2400W (24V).
• Input Voltage Range: 10V to 60V DC.
• Operating Temperature: -20°C to +60°C.
• Display: LCD.
• DC Load Connections: Yes.
• Protection: Overload, short circuit, reverse polarity, and overcharging protection.

Order Now:
Upgrade your solar power system with the Hybrid Pak Tech MPPT Solar Charge Controller. With its efficient MPPT technology, dual voltage support, and robust 70A capacity, it’s the perfect addition to your off-grid or residential solar setup. Add it to your cart today and start maximizing your solar energy potential!
